Vibration Test Development Software
Import up to 50GB of test data from any DAQ device
ObserVIEW
Analyze recorded data and develop vibration control test profiles
Data Editing
View data files for free! Crop, copy, cut, and paste sections of a waveform or append multiple compatible files. ObserVIEW can import .txt, .csv, .uff, .wav, .vfw, and .mat files.
Waveform Analysis
User-friendly vibration analysis options for both proficient engineers and those new to the industry, including FFT, resampling, filtering, PSD, transfer function, and more.
Modal Testing
Intuitive project setup dialog that walks you through parameter selection. The automatic location sequencer tells you exactly when and where to strike the DUT.
Test Profile Development
Test development options for replicating a component's operational environment using field data, including accelerated random, sine-on-random, and complex shock.
Do More with Your Data
Analyze noise and vibration data then create a test profile
Data Analysis
Do More with Your Data
Manipulate test data with one or more of ObserVIEW’s many analysis options. Data analysis helps uncover pertinent information, compare results, and calculate values better than raw data alone.
ObserVIEW can analyze data from any data acquisition system and supports most text and CSV files. It handles large recording files (up to 50GB) with ease and can synchronize data from multiple DAQ devices.
SOFTWARE LICENSES AVAILABLE
- Basic (free)
- Advanced
- Order Analysis
- Modal Testing
- FDS
- SRS
FREE TRIAL KEY
ObserVIEW can be configured for as many or as few modules as you’d like (à la carte). Our software is activated via an electronic key, making it easy to add new features at any time. A free trial of any software license is also available, or you can rent them for short-term needs.
REQUEST FREE TRIAL KEY

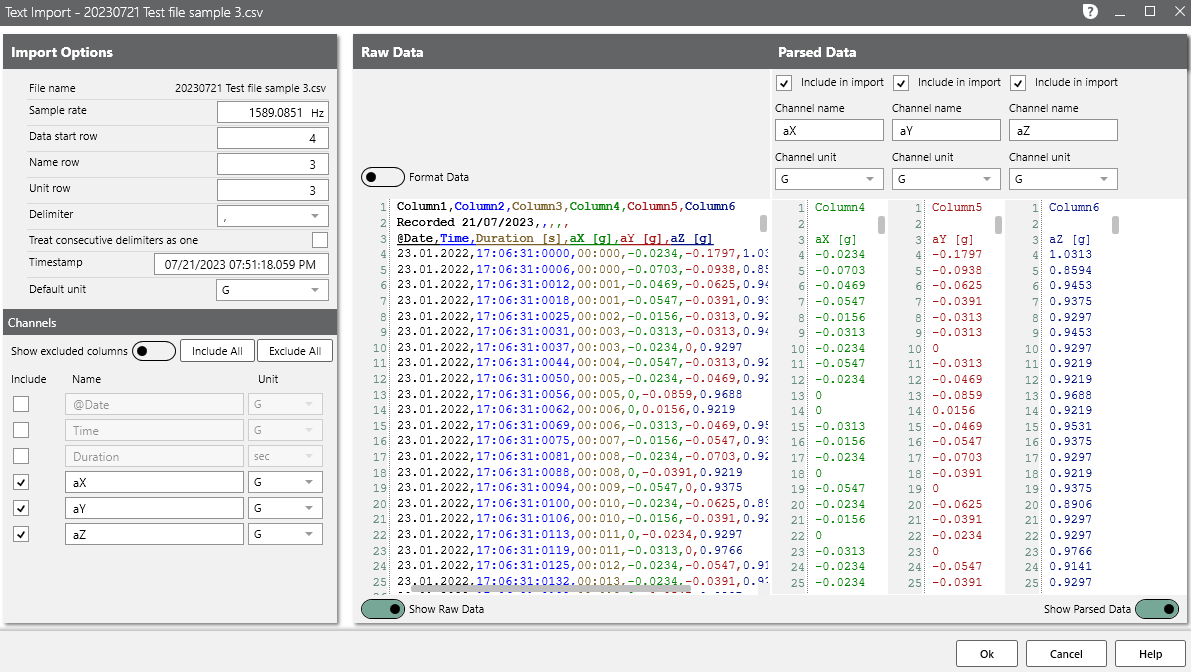

Import Options

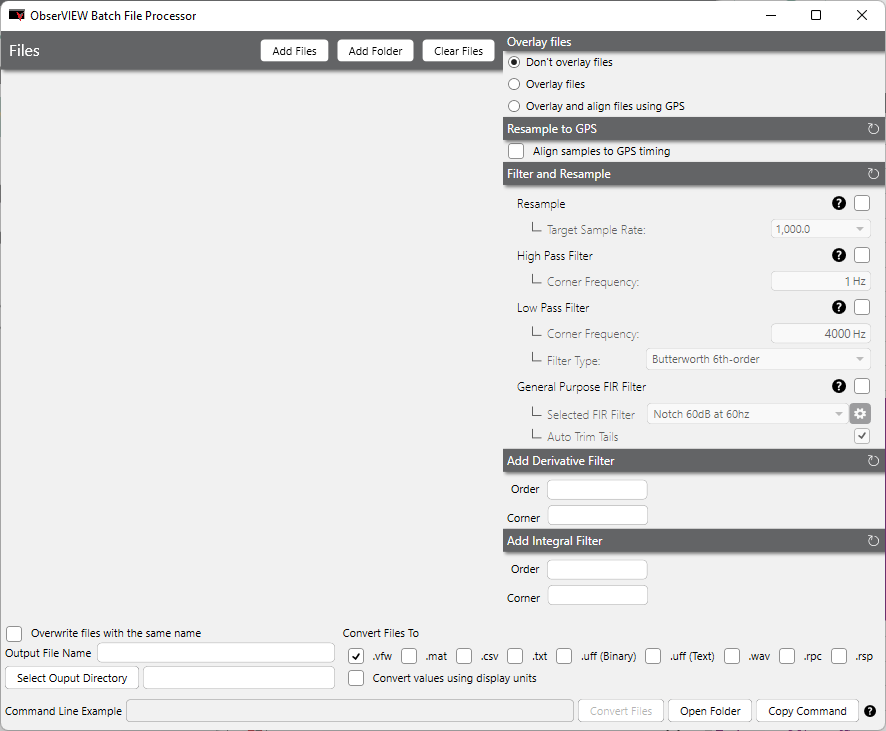

Import 50G of data from any data recording device to analyze in ObserVIEW. For large/multiple files, use the Text Import dialog to define import options or the Batch File Processor to overlay, filter, and resample files. ObserVIEW supports the following file types:
- CSV
- Text
- MTS RPC
- Universal File Format
- VFW
- WAV
Test Development
with Field-recorded Data
Develop custom test profiles reflective of your component’s end-use environment with ObserVIEW’s test development software options. Test standards can omit potentially damaging peaks or over-test the component, leading to over-design. Engineers can improve their test profiles with field-recorded data.

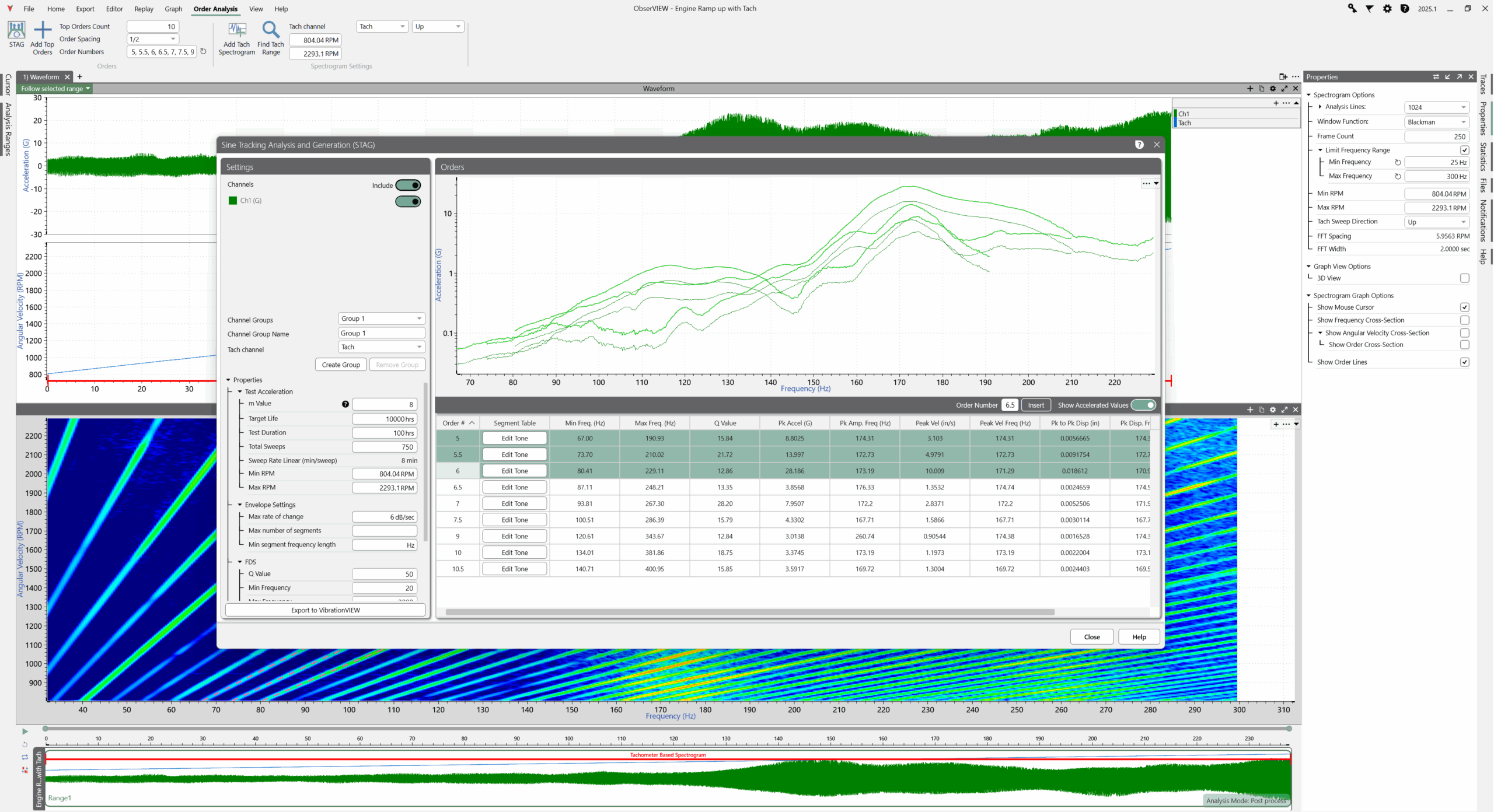

SINE TRACKING, ANALYSIS AND GENERATION (STAG)
Vibration Research Innovation #5, STAG allows engineers to analyze, generate, and accelerate a realistic sine-on-random vibration test. It uses order analysis and the fatigue damage spectrum to ensure all of a test profile’s vibration components are an accurate representation of the operational environment.
FATIGUE DAMAGE SPECTRUM (FDS)
The FDS creates a random test profile that is the damage equivalent to a recorded environment. ObserVIEW can convert an FDS into a single PSD profile and apply Kurtosion test acceleration to reduce testing time without using more energy.
SHOCK RESPONSE SPECTRUM (SRS)
The SRS creates a complex shock test profile from one or multiple recorded waveforms.
Monitor a live data stream
Observe real-time vibration levels to monitor system integrity, detect anomalies, or confirm test conditions.
Edit, append, and export files
Clean or combine datasets, add metadata, and export to formats compatible with analysis or reporting tools.
Resample and filter data
Remove noise or aliasing, focus on relevant frequency bands, and prepare signals for analysis.
Sync media files with data recordings
Correlate visual events with vibration spikes or failures for root cause analysis.
Apply frequency-domain graphs for power or statistical analysis
Identify dominant frequencies, assess spectral content, and evaluate energy distribution to validate results or diagnose issues.
Extract orders to analyze rotational or reciprocating components
Isolate and track vibration harmonics tied to RPM to assess performance or detect imbalances.

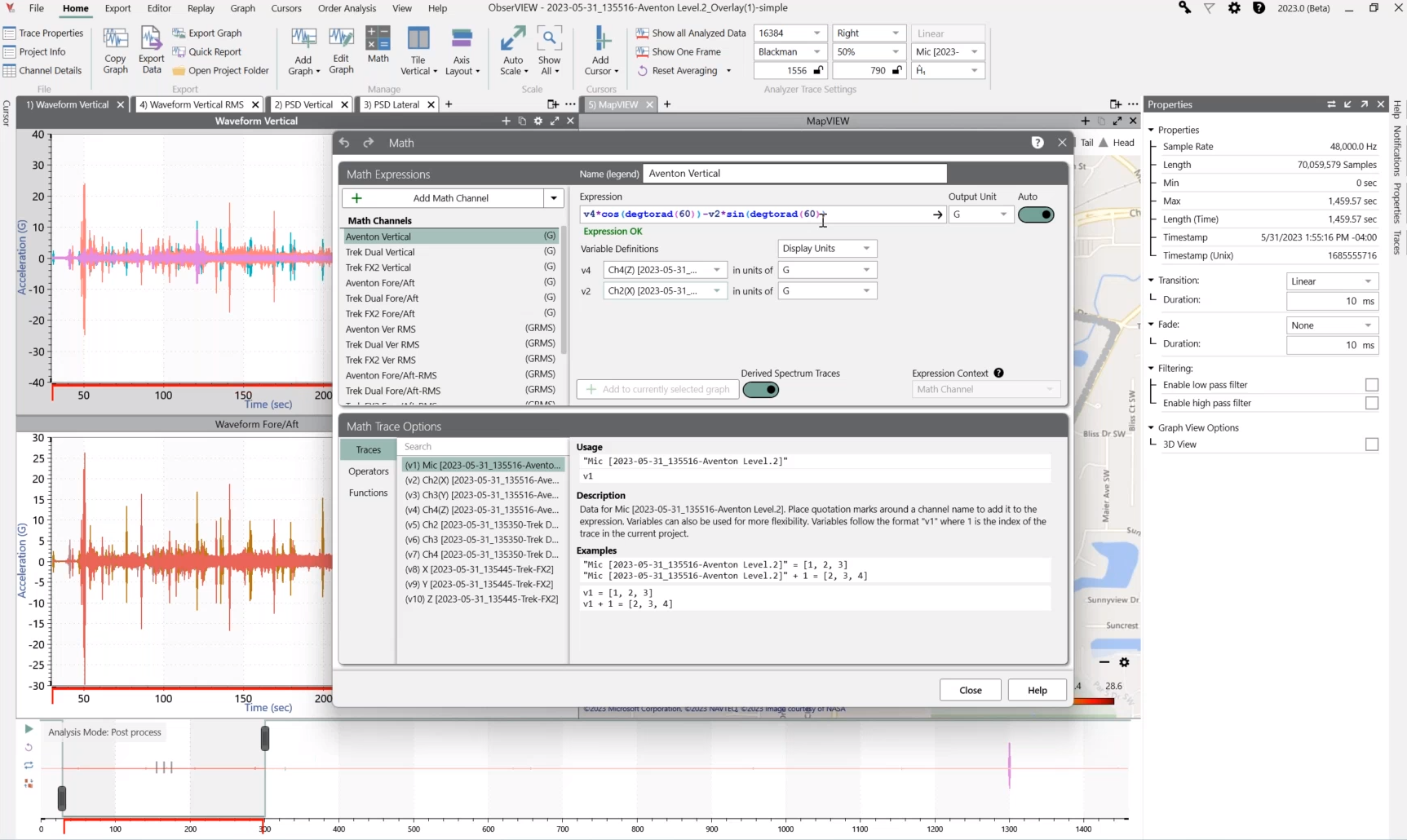

Math Traces
The math and statistics capabilities of ObserVIEW allow engineers to calculate custom values for their analysis. Math traces provide the flexibility of determining values for a data range and comparing them to the test data.
40 Uses for Math Traces
-
- Envelope multiple PSD traces
- Create an average PSD trace
- Scale a trace by a constant factor
- Find the ratio of two FFTs
- See All
