Time Waveform Editor

Edit Time Waveform Data

After data recording, import a waveform or a section to cut, crop, or copy. The quick selection options and responsive selection lines make time waveform editing quick and easy.

ObserVIEW can analyze data from any data acquisition system and supports most text and CSV files. It handles large recording files (up to 50GB) with ease and can synchronize data from multiple DAQ devices.

The time waveform editor helps engineers reduce processing time by eliminating erraneous data and allows them to consolidate mutliple files into one analysis.

File Types

ObserVIEW can import VibrationVIEW field waveform (VFW) files and several other file types.

• ObserVIEW project (.obserproj)
• TXT
• CSV
• RPC/RSP
• UFF/UNV
• WAV/WAVE

Append Files

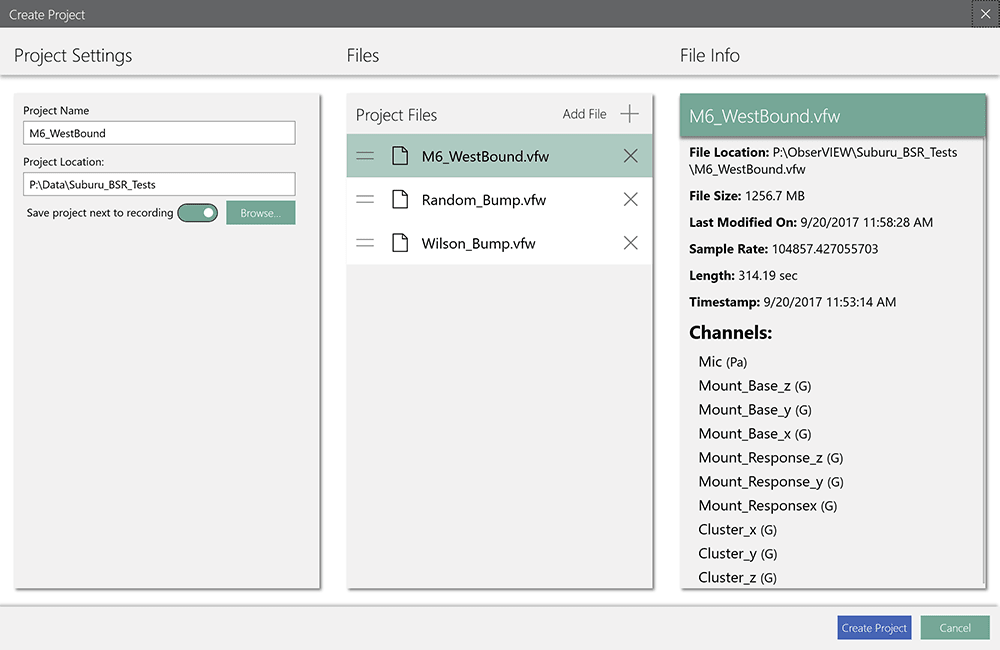

Select one or more time waveform files compatible with the active file and append the data to the end.

Users can select the transition or fade between the sections of data. ObserVIEW calculates and modifies the data to resolve any discontinuity between the end of one section and the beginning of the next.

• Transitions allow data to play back without any sudden breaks
• Fades allows data to play back in a repeating loop without sudden breaks

Export a File

Access general and file-based export options. Advanced export features include resampling, high-pass and low-pass IIR filtering, and general-purpose FIR filtering.

File Types

• VFW
• MAT
• CSV/TXT
• UFF (binary or text)
• WAV
• RPC
• RSP

View Data

The ObserVIEW main graph displays channels as traces and includes a legend box, graph title, axes titles, and axes that correspond with each trace.

Edit Graphs

• Select a trace type to add to the graph
• Change trace color, line pattern, width, and visibility, or remove the trace
• Adjust axes properties and trace layout options

Copy-Paste Traces

The copy-and-paste command allows users to seamlessly move data between ObserVIEW graphs and other software applications. Perform an easy comparison of data from a multitude of applications.

This feature is useful for comparing graph data from different time locations, multiple test results, various test environments, and much more.

Math Traces

The Math feature plots a user-defined math equation on a time or frequency-domain graph. It allows the user to implement custom math operations not defined by the current graph types.

Media Sync

With Multimedia Sync, users can view, edit, and analyze recordings with supplementary data such as video and audio.
