Dynamic Signal Analysis

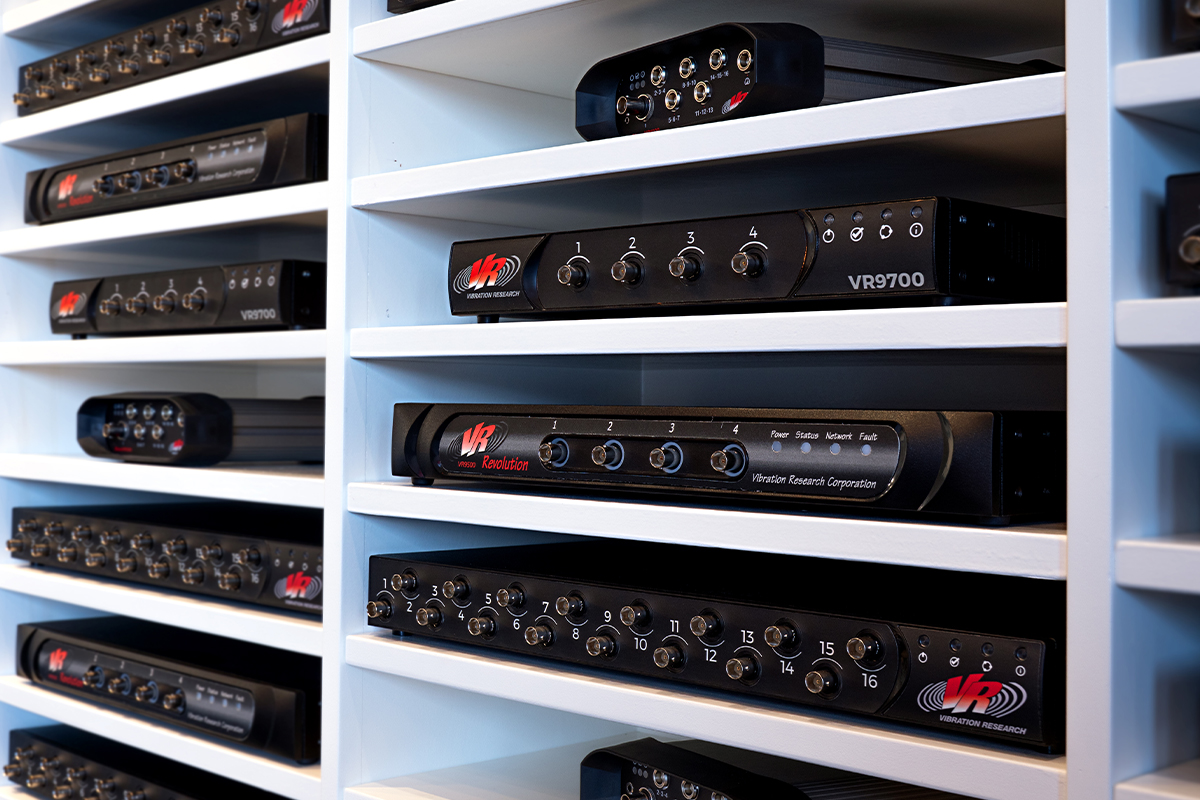

Vibration data acquisition hardware system
ObserVR1000
Dynamic Signal Analyzer
Recording & Analysis
Battery-powered, autonomous data acquisition in the field or lab
Touch the ObserVR1000 with NFC, and the VR Mobile app instantly creates a WiFi connection.
Select a trigger level, slope, channel, and duration to capture transient events.
Easy set up of multi-channel recordings with audio, GPS, tachometer, and more.
Start/stop recording on startup or at defined levels, transient events, and more.
Mobile App
Smart setup, monitoring, and interaction with the ObserVR1000
Onboard Applications
VR Mobile & ObserVR1000
Monitor Tests Remotely
Observe a live data recording from any mobile device (and simultaneously in the lab). Select, start, and stop the test and analyze issues with a live FFT display.
Set Up Autonomous Acquisition
Define any number of triggering events to record data without interference. Save processing time, capture transient events, drive external equipment, and more.
Connect a Tachometer
Configure a dual or quadrature tachometer to measure rotation. Encoder types include wheel, rotational, or scalar.
Display GPS Data
View position updates at about 1Hz along with GPS time base synchronization. Then, play the GPS media files in sync with a waveform recording.
Do More with Your Data
Analyze, Create, Run
Why Record Data?
Engineers in industries such as transportation, automotive, aerospace, and packaging use field data recordings throughout the product development cycle for proof-of-concept qualification, design evaluation, and process validation.
- Confirm environmental operating points and design destruct limits
- Act as initial reference to detect anomalies or degradation
- Improve digital twin simulation accuracy
- Enhance root-cause analysis and confidence in design direction
- Establish appropriate test limits and durations
- Generate statistical distributions for reliability and durability
- Generate tests that reflect the operational environment
ObserVR1000
Hardware Versatility
Dynamic Signal Analyzer & Vibration Controller
The versatility of the ObserVR1000 dynamic signal analyzer suits many test setups. Connect it to WiFi and collect data in the field. With the VR Mobile application, you can even monitor the data stream from a distance.
In the lab, connect via Ethernet and watch the recording in real time with the Live Analyzer feature or monitor fatigue damage with the Live FDS software.
Do you also perform vibration testing? Conveniently use the ObserVR1000 to drive any electrodynamic or servo-hydraulic shaker. The ObserVR1000 is compatible with the VibrationVIEW software to control vibration test profiles.
Live Analyzer
Analysis in Real-time
With Live Analyzer, you don’t have to wait until post-process to begin data analysis. View data in real-time and then pause the live stream to select, analyze, and export a section of the time waveform. Access the ObserVIEW graphing packages, employ averaging, analyze tachometer channels, and more.
Live Analysis
Triggering
Autonomous Data Acquisition
In VR Mobile, set up actions to occur automatically following an event; after the trigger, the ObserVR1000 will record data without intervention. This feature saves time and ensures accuracy and consistency during recording.
ApplicationsFatigue Damage
Live or Post-process Analysis
With Fatigue Damage Spectrum, calculate the amount of fatigue your product will experience in a lifetime. Then, monitor your test to determine how long it will take for the product to arrive at the lifetime of accumulated fatigue. The ObserVR1000 includes the length of time to reach fatigue in each axis.
Fatigue Damage Analysis
Assembly Line Robot DAQ
Laser Vibrometer
EV Battery DAQ
Drone DAQ
Transient Capture
Vibration Controller
Surveillance DAQ
Cabin Noise
