VR9700 Premium Performance
-
- Built on the reliable VR hardware reputation
- Class II, double insulated chassis
- Fast dual core processor, more memory
- 256kHz max sample rate
- Small footprint and low power requirement
- TruDAC digital output
- 24-bit inputs; 32-bit outputs
- USB 3.2 for external storage/autonomous operation
Reliable Architecture
VR has a long history of delivering reliable testing hardware, and that legacy continues today. The new VR9700 is built with the same longevity in mind. It features an updated architecture with increased computing power, enabling the implementation of advanced software capabilities well into the future. The double-isolated chassis reduces the potential for ground loops, the overall footprint has a low profile, the power requirement is low, and new ports have been added for USB connections and TruDAC digital outputs.
VR9700 Video
Noise Reduction
Class II, Double-Insulated Chassis
The VR9700’s Class II double-insulated chassis reduces the potential for ground loops and helps prevent external components from sourcing a ground reference through the controller. This helps to isolate the front inputs and drive outputs from the power system, which can improve overall signal integrity and reduce external noise.
In addition to the isolated power, the VR9700’s front inputs and drive outputs can also be isolated from each other with the flip of a switch, further breaking potential paths for ground loops.
Targeting Future Amplifier Technology

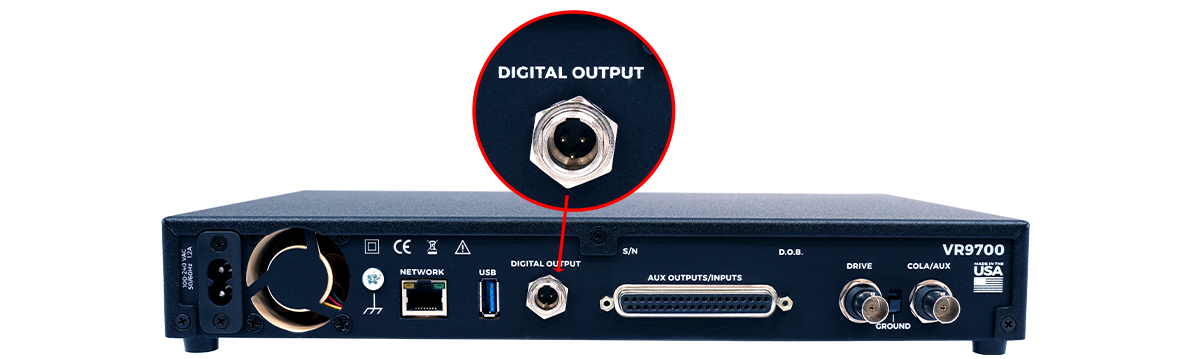

Vibration Research’s TruDAC Digital Output is a stand-alone unit that can be added to a VR10500 or VR9700 system.
A digital control outputs device serves several purposes:
-
- Detects disconnected and broken cables between the amplifier and controller
- Supports longer cable lengths between the amplifier and controller without control signal degradation
- Breaks the ground path between the amplifier and the controller drive, eliminating a common source of noise
Compatible with all shakers
VibrationVIEW versions 2025 and newer includes support for the VR9700. With VibrationVIEW, you can set up and safely control vibration shaker tests and generate custom reports. VR hardware works with any electrodynamic, servo-hydraulic, or servo-electric shaker and includes single-axis, dual-axis, dual-phase, rotational, three-axis, multi-loop/four-post, and seismic control options.
Support & Service
Hardware Warranty
The VR9700 ships with a 3-year hardware warranty that can be extended to a lifetime warranty with a valid support agreement.
Mix-n-Match Compatibility
The VR9700 will work with the VR10500 but not immediately upon launch. The goal is to enable mix-and-match compatibility in the near future.
General Specifications
VR9700 Power Switch
The VR9700 hardware does not have a power switch. You can leave the unit on in-between use without an issue. Connecting/disconnecting the device from a power source functions the same as the on/off switch on other VR hardware. VR’s software development team is also developing a “green mode,” where the hardware automatically enters a power-saving mode after a period of inactivity. To reduce power usage while the hardware device is connected to power but not in use, engineers can turn off the IEPE power to accelerometers under configuration > Inputs if desired. No matter the hardware, engineers should always turn down the amplifier gain when a test is not running.
Additional VR9700 Features
- Stackable for up to 128 channels and rack mountable
- Quiet cooling fan
- AUX outputs a higher voltage
- Remote inputs can measure 0-10V and are protected from damage to ±30V
- Remote outputs can be boosted to a higher voltage via an external power supply to 26.5V (5V provided by box alone)
- RGB/full-color ring LEDs
Dare to Compare
VR vibration controllers are dependable and intuitive. The new VR9700 is built with the same longevity in mind. Paired with our industry-leading control software and reliable support team, Vibration Research is the smart choice when replacing a vibration test controller.
Whether you need a brand new system or a replacement controller, we will let you try our fully enabled hardware and software for up to 30 days.
Upgrading to the VR9700 keeps your laboratory at the cutting edge of technology. Its faster processor unlocks advanced software capabilities, ensuring peak performance. When you’re ready to experience the most reliable controller, reach out to your sales representative.
