Built to Scale, Designed to Perform
- Up to 512 tightly-synchronized channels
- Recording and control capabilities
- Stackable and rack-mountable
- Up to six outputs for control
- User-friendly software for managing inputs
- Two week lead time
Easy Setup for a Smooth Workflow

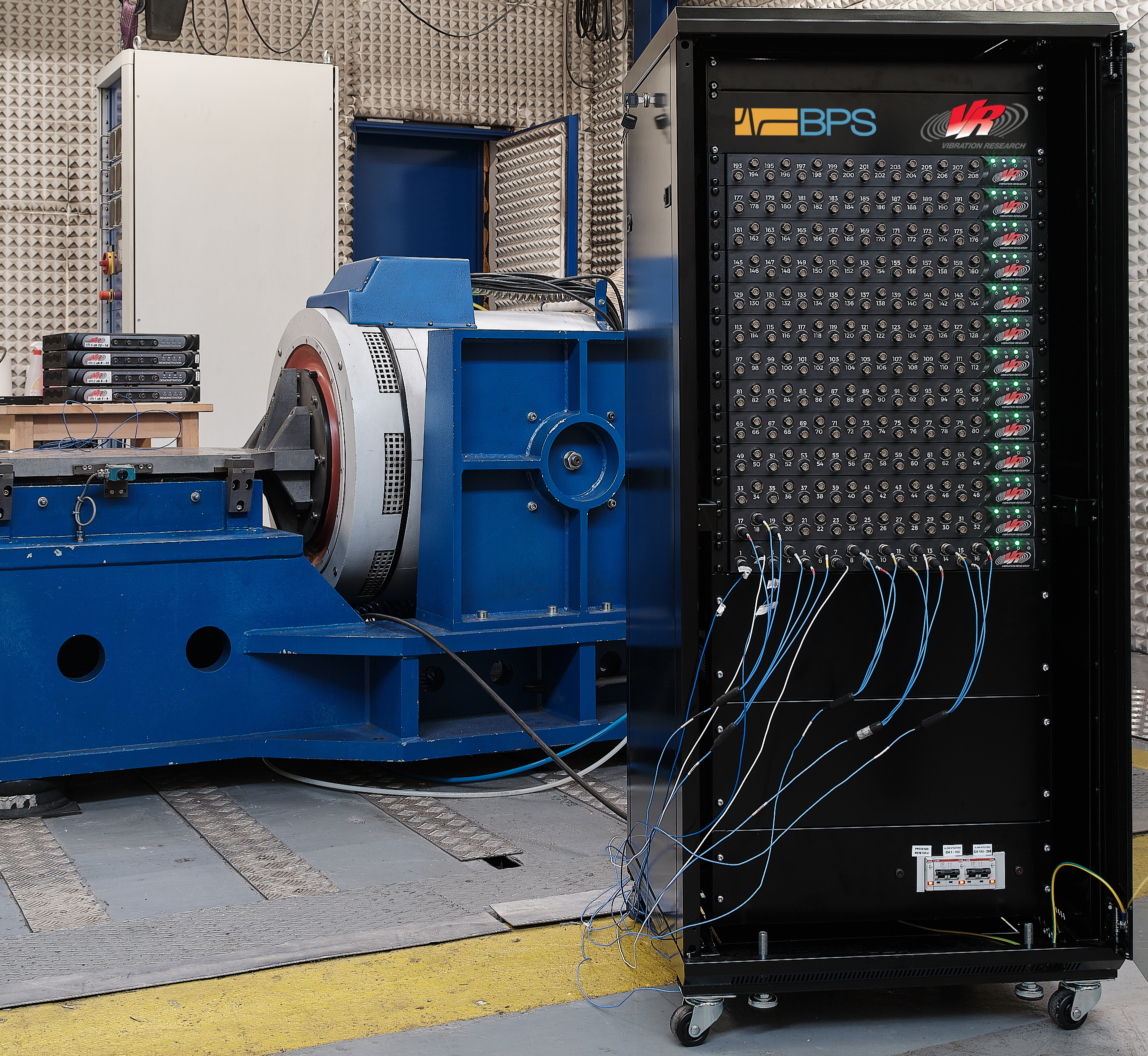

VibrationVIEW systems’ user-friendly interface makes for hassle-free system setup and software connection, so you can focus on what matters: a successful test. The VR10500 is stackable and rack-mountable, taking up less space while remaining accessible. LED light rings make it easy to identify the channel associated with a sensor.
Not Just Promises—Measured Performance

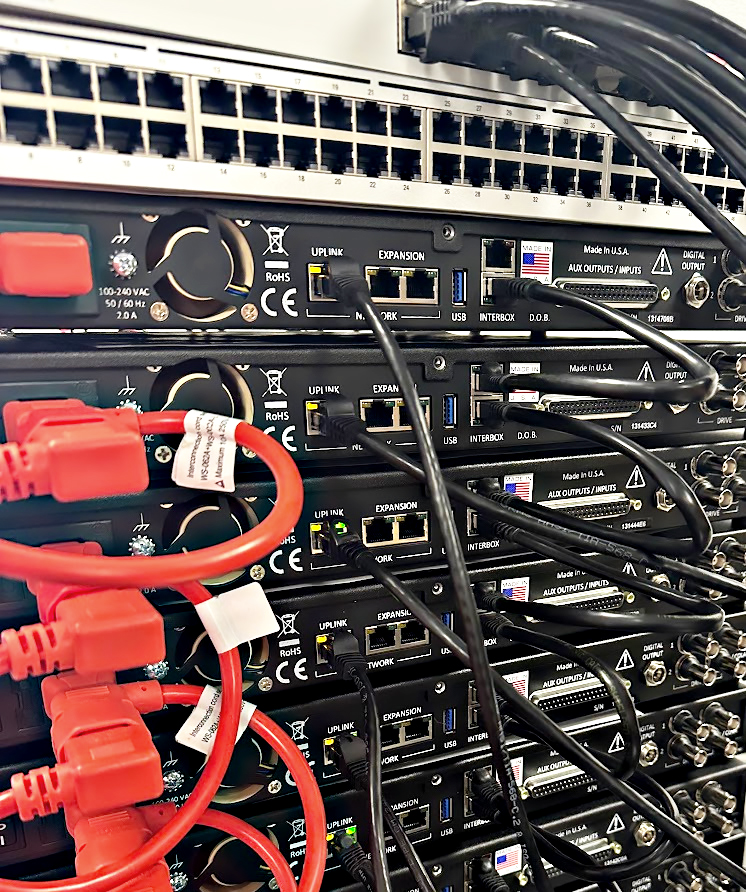

Whether you’re running 16 or 512 channels, maintain channel-to-channel phase integrity without compromise. The VR10500’s interbox interface ensures accurate synchronization of multiple units. Engineered for high channel testing, our systems deliver tight phase alignment to ensure accurate analysis at any scale.
Input/Output Capabilities
24-bit Inputs
- Supports IEPE, MEMS, DC-response, force, torque, pressure, and other sensors
- TEDS support for easy, error-free configuration
- RGB/full-color ring LEDs indicate connection status of IEPE accelerometers
- Sensor database for easy configuration
32-but Outputs
- Up to 4 analog and 2 digital outputs for control
- Digital outputs remove the analog link between shaker and amplifier, minimizing effects of ambient noise picked up between controller and amplifier

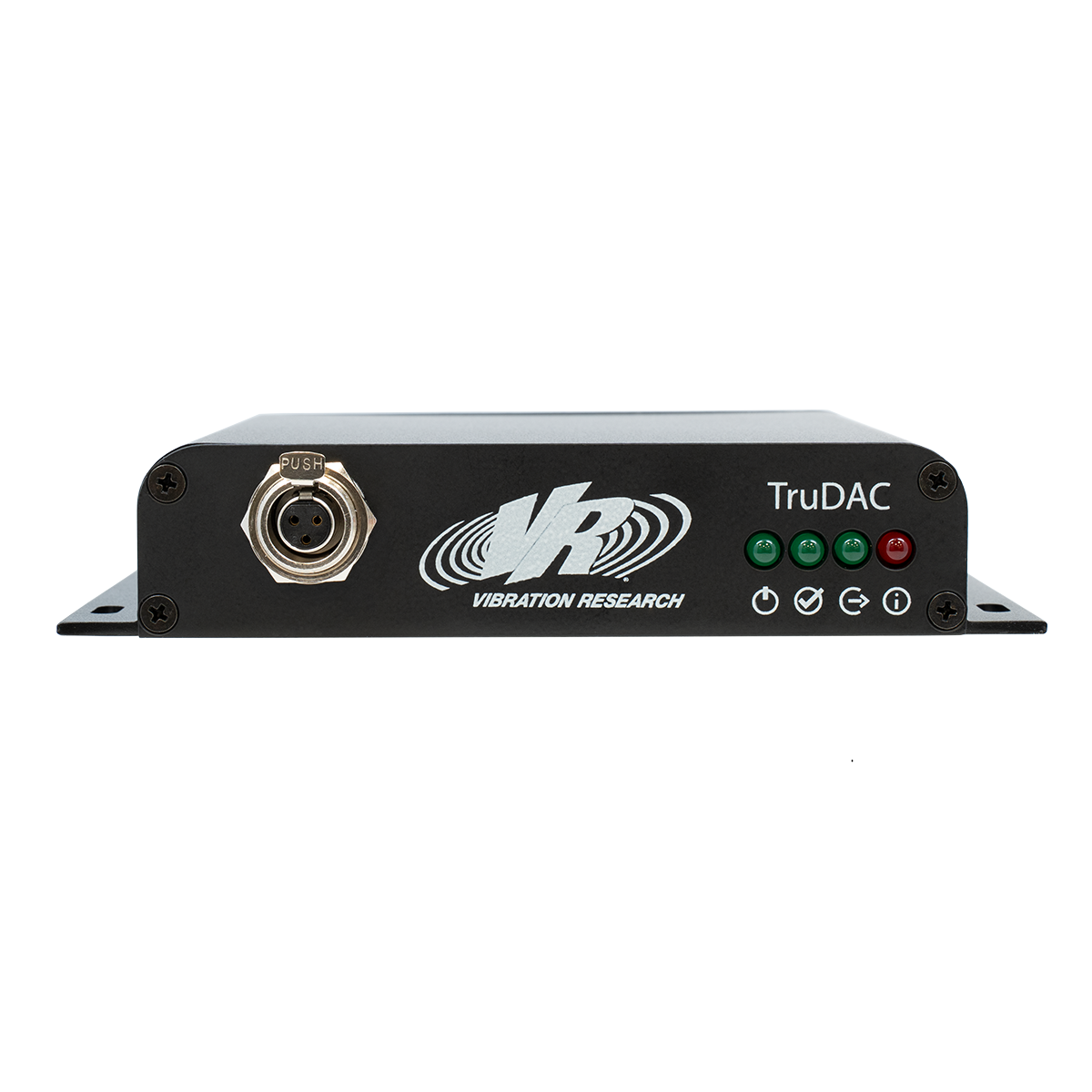

TruDAC Digital Output
Vibration Research’s TruDAC digital output is a stand-alone unit that can be added to a VR10500 system.
- Detects disconnected and broken cables between the amplifier and controller
- Supports longer cable lengths between the amplifier and controller without control signal degradation
- Breaks the ground path between the amplifier and the controller drive, eliminating a common source of noise
Multi-channel Software Support
The VibrationVIEW control software includes many features that simplify the management of high channel counts, including:
- Option to load input configurations
- Range selection in dialogs
- Page through groups of channels with Ctrl + PgUp/PgDn
- Option to always display large input configuration table
- Save an input profile to a test profile
- Assign individual channel limits; simultaneous notch and abort limits in Sine and Random
- Custom report options for input configuration, incl. mode, coupling, and accel power
Reliability You Can Trust
Your confidence should never be shaken. When you are testing a product for dependability, durability, and consumer satisfaction, you are also testing us. Your customer expects you to pass that test every time, and you can rely on us to help you succeed.
- Two week lead time
- US-based service and support
- 30 years of proven reliability
- Lifetime hardware warranty with U&SA
- User-friendly software with essential and innovative functions
